60-DAY BUILD | IN STOCK | |
| More Details | ||
| Model Number: | 10-SA-M-J-N | |
| Standard | Metric | |
| Maximum Cutting Force: | 10 Ton | |
| Cutting Table: | 31 x 16 | 787 x 406 mm |
| Swing Arm Dimension: | 16 x 13.75 | 406 x 349 mm |
| Stroke: | 1.5 - 4.0 | 38 - 102 mm |
| Daylight: | 4.0 | 102 mm |
| Power: | 1Phase - 220V 60Hz | |
| Cutting Speed: | 0.08 m/s | 0.26 ft./s |
| RPM: | 1700 r/min | |
| Motor Power: | 1.5 HP | 2kW |
| Operating Amps: | 9.21 A | |
| Startup Amps: | 28.5 - 30 A | |
| Electric Cord: | 48 | |
| Weight: | 858 lbs | 389 kg |
| Dimension: | 31.5 x 30.7 x 49.0 | 800 x 780 x 1245 mm |
| Shipping Dimension: | 32.0 x 33.0 x 57.0 | 813 x 838 x 1448 mm |
| Single Phase Terms: | Download | |
| Included | ||
| Vibration Control Pads | ||
| Video: | View Here | |
| Operation Manual: | ||
| Shipping Included: | No | |
| Extended Warranty: | Optional | |
| Replacement Parts: | Next day shipping | |
60-DAY BUILD | IN STOCK | |
| More Details | ||
| Model Number: | 10-SA-M-J-N | |
| Standard | Metric | |
| Cutting Table: | 31 x 16 | 787 x 406 mm |
| Swing Arm Dimension: | 16 x 13.5 | 406 x 343 mm |
| Stroke: | 1.5 | 38 mm |
| Daylight: | 4.0 | 102 mm |
| Power: | 3Phase - 220V 60HZ | |
| Cutting Speed: | 0.08 m/s | 0.26 ft./s |
| RPM: | 1730 r/min | |
| Motor Power: | 1 HP | 1kW |
| Operating Amps: | 9.21 A | |
| Startup Amps: | 28.5 - 30 A | |
| Electric Cord: | 48 | |
| Weight: | 858 lbs | 389 kg |
| Dimensions: | 31.5 x 30.7 x 49.0 | 800 x 780 x 1245 mm |
| Shipping Dimension: | 32.0 x 33.0 x 57.0 | 813 x 838 x 1448 mm |
| Included | ||
| Vibration Control Pads | ||
| Video: | View Here | |
| Operation Manual: | ||
| Shipping Included: | No | |
| Extended Warranty: | Optional | |
| Replacement Parts: | Next day shipping | |
60-DAY BUILD | IN STOCK | |
| More Details | ||
| Model Number: | 20-SA-M-J-N | |
| Standard | Metric | |
| Cutting Table: | 39.5" x 19.75" | 1003 x 502 mm |
| Swing Arm Dimension: | 20" x 13.75" | 508 x 349 mm |
| Stroke: | 1.5 - 5.0 | 38 - 127 mm |
| Daylight: | 5.0 | 127 mm |
| Power: | 3PHASE 220V 60Hz. | |
| Cutting Speed: | 0.08 m/s | 0.26 ft./s |
| RPM: | 1730 r/min | |
| Motor Power: | 2 HP | 3kW |
| Operating Amps: | 7 A | |
| Startup Amps: | 23 - 35 A | |
| Electric Cord: | 48" | |
| Weight: | 1367 lbs | 620 kg |
| Dimension: | 39.0 x 38.6 x 56.0 | 991 x 980 x 1422 mm |
| Shipping Dimension: | 43.0 x 43.0 x 65.0 | 1092 x 1092 x 1651 mm |
| Included | ||
| Vibration Control Pads | ||
| Video: | View Here | |
| Operation Manual: | ||
| Shipping Included: | No | |
| Extended Warranty: | Optional | |
| Replacement Parts: | Next day shipping | |
60-DAY BUILD | IN STOCK | |
| More Details | ||
| Model Number: | 27-SA-M-J-N | |
| Standard | Metric | |
| Swing Arm Dimension: | 23.5" x 18.5" | 597 x 470 mm |
| Table Dimension: | 40" x 23.5" | 1016 x 597 mm |
| Stroke: | 1.5 - 5.0 | 38 - 127 mm |
| Daylight: | 5.0 | 127 mm |
| Power: | 3Phase 220V 60Hz | |
| Cutting Speed: | 0.08 m/s | 0.26 ft./s |
| RPM: | 1730 RPM | |
| Motor Power: | 3 HP | 4kW |
| Operating Amps: | 8.5 A | |
| Startup Amps: | 30 - 40 A | |
| Electric Cord: | 48" | |
| Weight: | 1807 lbs | 820 kg |
| Dimension: | 47.2 x 40.0 x 54.0 | 1199 x 1016 x 1372 mm |
| Shipping Dimension: | 53.0 x 46.5 x 62.0 | 1346 x 1181 x 1575 mm |
| Included | ||
| Vibration Control Pads | ||
| Video: | View Here | |
| Operational Manual: | ||
| Shipping Included: | NO | |
| Extended Warranty: | Optional | |
| Replacement Parts: | Next Day Shipping | |

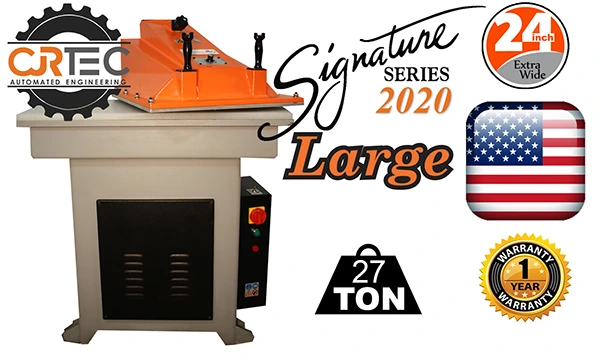

 swing arm 2020_600px.webp "Swing Arm Press 9")
60-DAY BUILD | IN STOCK | |
| More Details | ||
| Model Number: | 27-SA-M-J-N | |
| Standard | Metric | |
| Table Dimension: | 47 x 24 | 1194 x 610 mm |
| Swing Arm Dimension: | 24 x 23.5 | 610 x 597 mm |
| Stroke: | 1.5 - 5.0 | 38 - 127 mm |
| Daylight: | 5.0 | 127 mm |
| Power: | 3 Phase 220v 60hz | |
| Cutting Speed: | 0.08 m/s | 0.26 ft./s |
| RPM: | 1730 r/min | |
| Motor Power: | 3 HP | 4kW |
| Operating Amps: | 8.5 A | |
| Startup Amps: | 30 - 45 A | |
| Electric Cord: | 48 | |
| Weight: | 2006 lbs | 910 kg |
| Dimension: | 47.2 x 40.0 x 54.0 | 1199 x 1016 x 1372 mm |
| Shipping Dimensions | 53.0 x 46.5 x 62.0 | 1346 x 1181 x 1575 mm |
| Included | ||
| 1 Year Warranty | ||
| Vibration Control Pads | ||
| Video: | View Here | |
| Operation Manual: | ||
| Extended Warranty: | Optional | |
| Replacement Parts: | Next day shipping | |
60-DAY BUILD | IN STOCK | |
| Model Number: | 20-SA-A-J-N | |
| Standard | Metric | |
| Minimum Cutting Force: | 8 Ton | |
| Swing Arm Dimension: | 14.0 | 356 mm |
| Stroke Adjustment: | 0.0 - 2.36 | 0 - 60 mm |
| Range between the worktables: | 0.0 - 2.0 | 0 - 51 mm |
| Cutting Speed: | 0.08 m/s | 0.26 ft./s |
| Motor Size: | 1.5 HP | 2kW |
| Power requirement: | 3ph 220V 60HZ | |
| Electric Cord: | 5' | |
| Operating Amps: | 4 | |
| Startup Amps: | 21 | |
| RPM: | 1730 | |
| Cutting speeds available: | Up to 24 IPS | |
| Table Diameter: | 33.0 | |
| Video: | View Here | |
| Hydraulic Oil (not included): | ISO 68 | |
| Total Weight: | 1800 lbs | |
| Shipping Dimension: | 48.0 | 1219 mm |
| Dimension: | 42.0 | 1067 mm |
| Operation Manual: | ||
| Replacement parts: | Next day delivery | |
| Shipping Included: | NO | |
| Extended Warranty: | Optional | |
60-DAY BUILD | IN STOCK | |
| Model Number: | 27-KSP-M-J-N | |
| Standard | Metric | |
| Table: | 29.5 | 749 mm |
| Osha Cover: | YES | |
| Creasing and Cutting Speed: | 25±3 Stride/min | |
| Feeding Mode: | Manual | |
| Motor: | 3 HP | |
| Power: | 220v 3pH 60hz | |
| RPM: | 960 | |
| Adjustment Variable Between Bases: | 0.0 - 0.24 | 0 - 6 mm |
| Creasing and Cutting Knife Line Area: | <15 m | |
| Video: | View Here | |
| Hydraulic Oil (Not Included): | ISO 68 | |
| Net Weight of Machine: | 3968 lbs | 1800 kg |
| Overall Dimensions: | 53 x 59 x 63 | 1346 x 1499 x 1600 mm |
| Crate Dimensions: | 63 x 69 x 73 | 1600 x 1753 x 1854 mm |
| Crated Weight | 4300 lbs | 1950 kg |
60-DAY BUILD | IN STOCK | |
| Model Number: | 25-TH-M-J-N | |
| Standard | Metric | |
| Travel adjustment range: | 0.0 | 0 mm |
| Up and Down Speed: | 0.12 m/s | 0.39 ft./s |
| Range between the working tables: | 1.18 | 30 mm |
| Size of Traveling Head Base: | 19.7 | |
| Size of lower worktable: | 63.0 | 1600 mm |
| Auto Side Movement: | YES | |
| Motor: | 4 HP | |
| Power Requirement: | 3PHASE 220V 60Hz | |
| Startup Amps: | 20 | |
| Operating Amps: | 4 | |
| RPM: | 1680 | |
| Power Cord: | 5' | |
| Hydraulic Fluid (Not Included): | ISO 68 | |
| Overall Dimension: | 87.0 x 27.5 x 80.7 | 2210 x 699 x 2050 mm |
| Crate Size: | 89 x 29 x 84 | 2261 x 737 x 2134 mm |
| Total weight: | 3747 lbs | 1700 kg |
| Video: | View Here | |
| Operation Manual: | ||
| Replacement Parts: | Next day shipping | |
| Shipping: | Not Included | |
| Shipping Responsibility: | Buyer's | |
| Extended Warranty: | Optional | |
| Optional Equipment | ||
| Automatic Roll feed | Light Curtain | |
| Semi Auto Roll feed | Laser Marking System | |
| Single roll stand | Table Randomizer | |
| Multi Roll Stand | Die Clamping System | |
60-DAY BUILD | IN STOCK | |
| Model Number: | 25-TH-M-J-Y | |
| Standard | Metric | |
| Travel adjustment range: | 1.0 | 25 mm |
| Up and Down Speed: | 0.12 m/s | 0.39 ft./s |
| Range between the working tables: | 1.18 | 30 mm |
| Size of Traveling Head Base: | 19.7 | |
| Size of lower worktable: | 82.0 | 2083 mm |
| Motor: | 3 HP | |
| Power Requirement: | 3PHASE 220V 60Hz | |
| Startup Amps: | 20 | |
| Operating Amps: | 4 | |
| RPM: | 1680 | |
| Power Cord: | 5' | |
| Hydraulic Fluid (Not Included): | ISO 68 | |
| Overall Dimension: | 87.0 x 27.5 x 80.7 | 2210 x 699 x 2050 mm |
| Crate Size: | 98 x 29 x 84 | 2489 x 737 x 2134 mm |
| Total weight: | 3918 lbs | 1777 kg |
| Video: | View Here | |
| Operation Manual: | ||
| Replacement Parts: | Next day shipping | |
| Shipping Cost: | Not Included | |
| Shipping Responsibility: | Buyer's | |
| Extended Warranty: | Optional | |
| Optional Equipment | ||
| Automatic Roll feed | Light Curtain | |
| Semi Auto Roll feed | Laser Marking System | |
| Single Roll stand | Table Randomizer | |
| Multi Roll Stand | Die Clamping System | |
60-DAY BUILD | IN STOCK | |
| Model Number: | 25-TH-A-J-N | |
| Standard | Metric | |
| Head Size: | 20.0 | 508 mm |
| Lower Table Size: | 63.0 | 1600 mm |
| Travel adjustment range: | 1.2 - 6.0 | 30 - 152 mm |
| Up and Down Speed: | 4.75 in/s | 0.4 ft./s |
| Side to Side Speed: | 9 in/s | 0.75 ft./s |
| Motor Size: | 4 HP | 5kW |
| Power Requirements: | 220v 3Phase 60Hz | |
| Startup Amps: | 15 | |
| Running Amps: | 5 | |
| RPM: | 1680 | |
| Power Cord: | 10 ft | |
| Overall Dimensions: | 87.0 x 27.5 x 80.7 | 2210 x 699 x 2050 mm |
| Shipping Dimensions: | 89 x 29 x 84 | 2261 x 737 x 2134 mm |
| Weight: | 4630 lbs | 2100 kg |
| Video: | View Here | |
| Operation Manual: | ||
| Replacement Parts: | Next Day Shipping | |
| Extended Warranty: | Optional | |
60-DAY BUILD | IN STOCK | |
| Model Number: | 25-BP-M-J-N | |
| Standard | Metric | |
| Travel adjustment range | 0.0 | 0 mm |
| Up/Down Travel Speed | 0.10m/s | 0.33 ft./s |
| Range between the working tables | 2.0 | 51 mm |
| Size of the upper pressing board | 63.0 | 1600 mm |
| Size of lower worktable | 63.0 | 1600 mm |
| Motor power | 3HP | 4kW |
| Power Requirement | 3PHASE220V60Hz. | |
| Option for Single Phase Power | YES + $830.00 | |
| Start up Amps | 20 amps | |
| Operating Amps | 4 amps | |
| Overall Dimension | 73.0 x 27.5 x 63.0 | 1854 x 699 x 1600 mm |
| Crate Dimension | 85.0 x 35.5 x 71.0 | 2159 x 902 x 1803 mm |
| Hydraulic Fluid (Not Included) | ISO 68 | |
| Total weight | 3086 lbs | 1400 kg |
| Video | View Here | |
| Operation Manual | ||
| Replacement Parts | Next day shipping | |
| Shipping Included | No | |
| Warranty | 1 Year | |
| Extended Warranty | Optional | |
| Optional Equipment | ||
| Automatic Roll feed | Light Curtain | |
| Semi Auto Roll feed | Laser Marking System | |
| Single roll stand | Table Randomizer | |
| Multi Roll Stand | Die Clamping System | |
60-DAY BUILD | IN STOCK | |
| Model Number: | 30-BP-M-J-N | |
| Standard | Metric | |
| Travel adjustment range: | 4.0 | 102 mm |
| Range between the working tables | 2 | 51 mm |
| Size of the upper pressing board: | 62 | 1575 mm |
| Size of lower worktable: | 62 | 1575 mm |
| Motor power: | 4 HP | 5kW |
| Power Requirement | 3PHASE220V60Hz. | |
| Startup Amps | 20 | |
| Operating Amps | 4 | |
| RPM | 1680 | |
| Power Cord | 5' | |
| Hydraulic Fluid (Not Included) | ISO 68 | |
| Overall dimension: | 91 x 48 x 56 | 2311 x 1219 x 1422 mm |
| Total weight: | 4700 lbs | 2132 kg |
| Operation Manual | ||
| Replacement Parts | Next day shipping | |
| Shipping Cost | Not Included | |
| Shipping Responsibility | Buyers | |
| Extended Warranty | Optional | |
| Video | View Here | |
| Optional Equipment | ||
| Multi Roll Stand | Single roll stand | |
| Table Randomizer | Light Curtain | |
| Die Clamping System | Laser Marking System | |
60-DAY BUILD | IN STOCK | |
| Model Number: | 30-BP-A-J-N | |
| Standard | Metric | |
| Travel adjustment range: | 4.0 | 102 mm |
| Range between the working tables | 2.5 | 64 mm |
| Size of the upper pressing board: | 63.0 | 1600 mm |
| Size of lower worktable: | 63 | 1600 mm |
| Motor power: | 4 HP | 5kW |
| Power Requirement | 3PHASE 220V 60Hz | |
| Startup Amps | 20 | |
| Operating Amps | 4 | |
| RPM | 1680 | |
| Power Cord | 5' | |
| Hydraulic Fluid (Not Included) | ISO 68 | |
| Overall dimension: | 91 x 48 x 56 | 2311 x 1219 x 1422 mm |
| Total weight: | 4700 | 2132 kg |
| Operation Manual | ||
| Replacement Parts | Next day shipping | |
| Shipping Cost | Not Included | |
| Shipping Responsibility | Buyers | |
| Extended Warranty | Optional | |
| Video: | View Here | |
| Optional Equipment | ||
| Multi Roll Stand | Table Randomizer | |
| Light Curtain | Laser Marking System | |
| Die Clamping System | Single roll stand | |
60-DAY BUILD | IN STOCK | |
| Model Number: | 35-BP-M-J-N | |
| Standard | Metric | |
| Travel adjustment range | 4.0 | 102 mm |
| Range between the working tables | 2.5 | 64 mm |
| Size of the upper pressing board | 63.0 | 1600 mm |
| Size of lower worktable | 63 | 1600 mm |
| Motor power | 3 HP | 4kW |
| Power Requirement | 3PHASE220V60Hz. | |
| Power Cord | 5' | |
| Startup Amps | 26 | |
| Operating Amps | 5 | |
| Overall dimension | 84.5 x 45 x 59 | |
| Crate Demension | 85 x 35.5 x 71 | |
| Total weight | 4014 lbs | 1821 kg |
| Hydraulic Fluid (Not Included) | ISO 68 | |
| Operation Manual | ||
| Replacement Parts | Next day shipping | |
| Shipping Cost | Not Included | |
| Shipping Responsibility | Buyers | |
| Extended Warranty | Optional | |
| Video: | View Here | |
Optional Equipment
| ||
60-DAY BUILD | IN STOCK | |
| Model Number: | 35-BP-A-J-N | |
| Standard | Metric | |
| Travel adjustment range: | 4.0 | 102 mm |
| Range between the working tables: | 2.5 | 64 mm |
| Size of the upper pressing board: | 63.0 | 1600 mm |
| Size of lower worktable: | 63 | 1600 mm |
| Motor power: | 3kW 4hp | 4kW |
| Power Requirement | 3PHASE 220V 60Hz. | |
| Startup Amps | 20 | |
| Operating Amps | 4 | |
| RPM | 1680 | |
| Power Cord | 5' | |
| Hydraulic Fluid (Not Included) | ISO 68 | |
| Overall dimension: | 90 x 51 x 87 | 2286 x 1295 x 2210 mm |
| Total weight: | 4960 lbs | 2250 kg |
| Operation Manual | ||
| Replacement Parts | Next day shipping | |
| Shipping Cost | Not Included | |
| Shipping Responsibility | Buyers | |
| Extended Warranty | Optional | |
| Video: | View Here | |
Optional Equipment
| ||
60-DAY BUILD | IN STOCK | |
| Model Number: | 40-BP-M-J-N | |
| Standard | Metric | |
| Travel adjustment range | 5" | 127 mm |
| Range between the working tables | 6.5" | 165 mm |
| Size of the upper pressing board | 63.0 x 28.0" | 1600 x 711 mm |
| Size of lower worktable | 63" | 1600 mm |
| Motor power | 4 hp | 5kW |
| Power Requirement | 3PHASE220V60Hz. | |
| RPM | 1680 | |
| Power Cord | 5' | |
| Startup Amps | 26 | |
| Operating Amps | 8 | |
| Overall dimension | 88.5 x 49.0 x 59.0 | |
| Posts | 4 | |
| Net Weight | 3875 lbs | 1758 kg |
| Hydraulic Fluid (Not Included) | ISO 68 | |
| Operation Manual | ||
| Replacement Parts | Next day shipping | |
| Shipping Cost | Not Included | |
| Shipping Responsibility | Buyers | |
| Extended Warranty | Optional | |
| Video: | View Here | |
Optional Equipment
| ||
60-DAY BUILD | IN STOCK | |
| Model Number: | 40-BP-A-J-N | |
| Standard | Metric | |
| Travel adjustment range | 0 to 4.25 | 0 - 108 mm |
| Range between the working tables | 2.25 | 57 mm |
| Size of the upper pressing board | 63.0 | 1600 mm |
| Size of lower worktable | 63 | 1600 mm |
| Motor power | 4 hp | 5kW |
| Power Requirement | 3PHASE 220V 60Hz. | |
| RPM | 1680 | |
| Power Cord | 5' | |
| Startup Amps | 26 | |
| Operating Amps | 5 | |
| Overall dimension | 91 x 57 x 87 | |
| Posts | 4 | |
| Net Weight | 6700 lbs | 3039 kg |
| Hydraulic Fluid (Not Included) | ISO 68 | |
| Operation Manual | ||
| Replacement Parts | Next day shipping | |
| Shipping Cost | Not Included | |
| Shipping Responsibility | Buyers | |
| Extended Warranty | Optional | |
| Video: | View Here | |
Optional Equipment
| ||
60-DAY BUILD | IN STOCK | |
| Model Number: | 50-BP-M-J-N | |
| Standard | Metric | |
| Travel adjustment range | 5 1/8 | 13157 mm |
| Range between the working tables | 7 3/32 | 178 mm |
| Size of the upper pressing board | 63.0 x 31.5 | 1600 x 800 mm |
| Size of lower worktable | 63.0 x 31.5 | 1600 x 800 mm |
| Motor power | 6 HP | 8kW |
| Power Requirement | 3PHASE 220V 60Hz. | |
| Startup Amps | 75 A | |
| Operating Amps | 20 A | |
| RPM | 1680 | |
| Power Cord | 5' | |
| Posts | 4 | |
| Overall dimension: | 92.5 x 55.0 x 61.0 | 2350 x 1397 x 1549 mm |
| Net Weight | 2350kg | 1066 kg |
| Hydraulic Fluid (Not Included) | ISO 68 | |
| Operation Manual | ||
| Replacement Parts | Next day shipping | |
| Shipping Cost | Not Included | |
| Shipping Responsibility | Buyers | |
| Extended Warranty | Optional | |
| Video | View Here | |
Optional Equipment
| ||
60-DAY BUILD | IN STOCK | |
| Model Number: | 70-BP-M-J-N | |
| Standard | Metric | |
| Travel adjustment range | 5.0 | 127 mm |
| Range between the working tables | 2.0 | 51 mm |
| Size of the upper pressing board | 63.0 | 1600 mm |
| Size of lower worktable | 63.0 | 1600 mm |
| Motor power | 6HP | 8kW |
| Power Requirement | 3PHASE 220V 60Hz. | |
| Startup Amps | 75 | |
| Operating Amps | 20 | |
| RPM | 1680 | |
| Power Cord | 5' | |
| Posts | 4 | |
| Overall dimension | ||
| Net Weight | ||
| Hydraulic Fluid (Not Included) | ISO 68 | |
| Operation Manual | ||
| Replacement Parts | Next day shipping | |
| Shipping Cost | Not Included | |
| Shipping Responsibility | Buyers | |
| Extended Warranty | Optional | |
| Video | View Here | |
Optional Equipment
| ||
60-DAY BUILD | IN STOCK | |
| Model Number: | 70-RH-M-J-N | |
| Standard | Metric | |
| Travel adjustment range: | 0 to 5.5 | 0 - 140 mm |
| Range between the working tables: | 2 | 51 mm |
| Size of the upper pressing board: | 63.0 x 31.5 | 1600 x 800 mm |
| Size of lower worktable: | 63.0 x 32.3 | 1600 x 820 mm |
| Motor power: | 10 hp | 14kW |
| Net weight : | 11023 lbs | 5000 kg |
| Video | View Here | |
| Gross weight: | 11464 lbs | |
| Overall dimension: | 90.5 x 86.6 x 78.7 | 2299 x 2200 x 1999 mm |
| Power | 3PHASE 220V 60Hz | |
| Operating Amps | 35 A | |
| Startup Amps | 180 A | |
| Hydraulic Fluid (Not Included) | ISO 68 | |
| Touch Screen Control Panel | Weintech | |
| Single or multiple layers of material | Yes | |
| Manual or automatic movement of the cutting head | Yes | |
| Cut counter | Yes | |
| Up down speed control | Yes | |
| Operation Manual | Electronic pdf | |
| Replacement Parts | Next Day Shipping | |
60-DAY BUILD | IN STOCK | |
| Model Number: | 70-RH-M-J-N | |
| Standard | Metric | |
| Travel Adjustment Range: | 0 to 5.5 | 0 - 140 mm |
| Range between Working Tables: | 2 | |
| Size of upper pressing board: | 63.0 x 31.5 | |
| Size of lower worktable: | 63.0 x 32.3 | 1600 x 820 mm |
| Motor Power: | 10 HP | 14kW |
| Net Weight: | 11023 lbs | |
| Video: | View Here | |
| Gross Weight: | 11464 lbs | |
| Dimension: | 90.5 x 86.6 x 78.7 | 2299 x 2200 x 1999 mm |
| Power: | 3PHASE 220V 60Hz | |
| Operating Amps: | 35 | |
| Starting Amps: | 180 | |
| Hydraulic Fluid (not included): | ISO 68 | |
| Operation Manual: | ||
| Shipping responsibility: | Buyer | |
| Replacement Parts: | Next day shipping | |
60-DAY BUILD | IN STOCK | |
| Model Number: | 80-RH-A-J-Y | |
| Standard | Metric | |
| Travel adjustment range : | 0 to 5.5 | 0 - 140 mm |
| Range between the working tables : | 2 | 51 mm |
| Size of the upper pressing board : | 63.0 x 31.5 | 1600 x 800 mm |
| Size of lower worktable : | 63.0 x 32.3 | |
| Motor power : | 10 hp | 14kW |
| Net weight : | 11023 lbs | 5000 kg |
| Video | View Here | |
| Gross weight : | 11464 lbs | 5200 kg |
| Dimensions | 90.5 x 86.6 x 78.7 | 2299 x 2200 x 1999 mm |
| Power | 3PHASE 220V 60Hz | |
| Operating Amps | 35 | |
| Startup Amps | 180 | |
| Hydraulic Fluid (Not Included) | ISO 68 | |
| Touch Screen Control Panel | Weintech | |
| Single or multiple layers of material | Yes | |
| Manual or automatic movement of the cutting head | Yes | |
| Cut counter | Yes | |
| Up down speed control | Yes | |
| Operation Manual | Electronic pdf | |
| Replacement Parts | Next day shipping | |
60-DAY BUILD | IN STOCK | |
| Standard | Metric | |
| Custom Built to Cut Flooring | ||
| Max cutting force : | 200 Ton | |
| Stroke range : | 0 | 0 mm |
| Range between the working tables : | 3.0 | 76 mm |
| Size of upper cutting board : | 66.0 | |
| Size of lower worktable : | 66.0 | |
| Motor power : | 20 HP | 27kW |
| Picking equipment size : | 74 x 65 x 67 | 1880 x 1651 x 1702 mm |
| Feeding in table size : | 82 x 67 x 47 | 2083 x 1702 x 1194 mm |
| Machine size : | 147 x 110 x 87 | 3734 x 2794 x 2210 mm |
| Feeding out table size : | 67 x 74 x 47 | 1702 x 1880 x 1194 mm |
| Collecting waste equipment size : | 145 x 31 x 72 | 3683 x 787 x 1829 mm |
| Control box : | 19 x 23 x 51 | 483 x 584 x 1295 mm |
| Auto Sheet Feeder (Stack Capacity) | 400 Sheets | |
| Sheets per hour | 700 | |
| Hydraulic Fluid (Not Included) | ISO 68 | |
| Video | View Here | |
| INCLUDED EQUIPMENT | ||
| * Conveyor Discard system | * Water cooling equipment | |
| * Pneumatic auto sheet feed | * Safety light curtain | |
| * 48 pile sheet lift | * PVC die cut track | |
| * PLC touching screen : Weiview brand | * Laser location system | |
| * PLC: Mitsubishi brand | * Warning working light | |
| * Stop Limitors | ||
60-DAY BUILD | IN STOCK | |
| Model Number: | 200-BPC-A-J-Y | |
| Standard | Metric | |
| Tonnage: | 200 Ton | |
| Stroke: | 0.0 | 0 mm |
| Cutting Area: | 82.0 | |
| Automation: | Gantry Sheet Feeder | |
| Loading: | Auto Scissor Table with Photo Eye | |
| Positioning: | Roller Left Side Positioning Table | |
| Operations: | Auto & Manual | |
| Conveyor Belt: | Continuous Nylon | |
| PLC Controller: | Mitsubishi | |
| Control: | Touch Screen | |
| Cut Control: | Deadmen | |
| Light Curtains: | Front and Back | |
| Auto Picking Head: | Suction | |
| Air Compressor: | Not Included | |
| Vibration Foot Pads: | Included | |
| Die Clamps: | Manual Right Angle Brackets | |
Optional Equipment
| ||
Send us your die and material so we can do a test cut for you.
