Beam Clicker Press
by CJRTEC

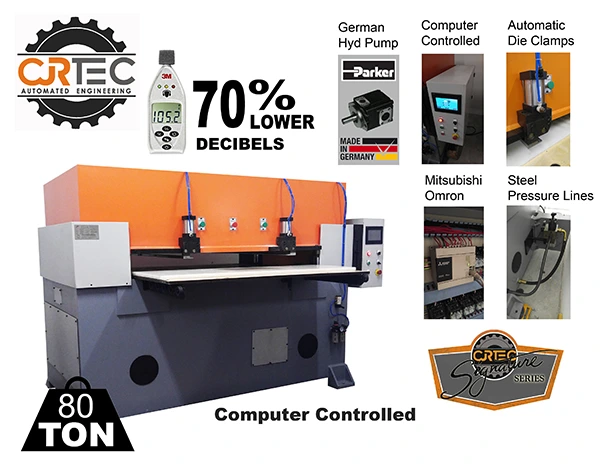

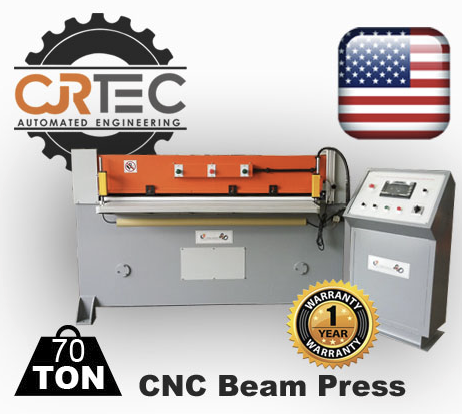

Beam Press - Clicker Press by CJRTec
CJR Clicker Press Die Cutting Machine electronics made by Siemens
cjrtec clicker press die cutting machine
cjrtec clicker press die cutting machine

40 Ton Beam Press

0
0
60-DAY BUILD PRICE

IN STOCK PRICE
guarantee best price
guarantee best price
Model Number:40-BP-M-J-N
Standard Metric
Travel adjustment range5 1/8" 13157 mm
Range between the working tables7 3/32" 178 mm
Size of the upper pressing board63.0 x 28.7 1600 x 729 mm
Size of lower worktable63 1600 mm
Motor power4 hp 5kW
Power Requirement3PHASE220V60Hz.
RPM1680
Power Cord5'
Startup Amps26
Operating Amps5
Overall dimension88.5 x 49.0 x 59.0
Posts4
Net Weight1750 kg 794 kg
Hydraulic Fluid (Not Included)ISO 68
Operation ManualPDF
Replacement PartsNext day shipping
Shipping CostNot Included
Shipping ResponsibilityBuyers
Warranty1 Year
Extended WarrantyOptional

Video:View Here

Optional Equipment
  • Automatic Roll feed
  • Light Curtain
  • Semi Auto Roll feed
  • Laser Marking System
  • Single Roll stand
  • Table Randomizer
  • Multi Roll Stand
  • Die Clamping System

Beam Press - Clicker Press by CJRTec
CJR Clicker Press Die Cutting Machine electronics made by Siemens
cjrtec clicker press die cutting machine
cjrtec clicker press die cutting machine

50 Ton Beam Press

0
0
60-DAY BUILD PRICE

IN STOCK PRICE
guarantee best price
guarantee best price
Model Number:50-BP-M-J-N
Standard Metric
Travel adjustment range5 1/8 " 13157 mm
Range between the working tables7 3/32 " 178 mm
Size of the upper pressing board63.0 x 31.5 1600 x 800 mm
Size of lower worktable63.0 x 31.5 1600 x 800 mm
Motor power6 HP 8kW
Power Requirement3PHASE 220V 60Hz.
Startup Amps75 A
Operating Amps20 A
RPM1680
Power Cord5'
Posts4
Overall dimension:92.5 x 55.0 x 61.0 2350 x 1397 x 1549 mm
Net Weight2350kg 1066 kg
Hydraulic Fluid (Not Included)ISO 68


Operation ManualPDF
Replacement PartsNext day shipping
Shipping CostNot Included
Shipping ResponsibilityBuyers
Warranty1 Year
Extended WarrantyOptional

VideoView Here

Optional Equipment
  • Automatic Roll feed
  • Light Curtain
  • Semi Auto Roll feed
  • Laser Marking System
  • Single Roll stand
  • Table Randomizer
  • Multi Roll Stand
  • Die Clamping System

Beam Press - Clicker Press by CJRTec
CJR Clicker Press Die Cutting Machine electronics made by Siemens
cjrtec clicker press die cutting machine

25 Ton Beam Press

21
21
60-DAY BUILD PRICE

IN STOCK PRICE
guarantee best price
guarantee best price
Model Number:25-BP-M-X-N
Standard Metric
Travel adjustment range0.0 " 3.9 1 mm
Up/Down Travel Speed0.10m/s 0.33 ft./s
Range between the working tables2.0 " 6.0 51 mm
Size of the upper pressing board63.0 " 19.5 1600 mm
Size of lower worktable63.0 " 19.5 1600 mm
Motor power3HP 4kW
Power Requirement3PHASE220V60Hz.
Option for Single Phase PowerYES + $830.00
Start up Amps20 amps
Operating Amps4 amps
Overall Dimension73.0 x 27.5 x 63.0 1854 x 699 x 1600 mm
Crate Dimension85.0 x 35.5 x 71.0 2159 x 902 x 1803 mm
Hydraulic Fluid (Not Included)ISO 68
Total weight3086 lbs 1400 kg

VideoView Here
Operation ManualPDF
Replacement PartsNext day shipping
Shipping IncludedNo
Warranty1 Year
Extended WarrantyOptional

Optional Equipment
Automatic Roll feedLight Curtain
Semi Auto Roll feedLaser Marking System
Single roll standTable Randomizer
Multi Roll StandDie Clamping System

Beam Press - Clicker Press by CJRTec
CJR Clicker Press Die Cutting Machine electronics made by Siemens
cjrtec clicker press die cutting machine
cjrtec clicker press die cutting machine

30 Ton Beam Press

22
22
60-DAY BUILD PRICE

IN STOCK PRICE
guarantee best price
guarantee best price
Model Number:30-BP-M-X-N
Standard Metric
Travel adjustment range:4.0 102 mm
Range between the working tables2.5 " 6.5 64 mm
Size of the upper pressing board:62.0 " 19.5 1575 mm
Size of lower worktable:62 " 20 1575 mm
Motor power:4 HP 5kW
Power Requirement3PHASE220V60Hz.
Startup Amps20
Operating Amps4
RPM1680
Power Cord5'
Hydraulic Fluid (Not Included)ISO 68
Overall dimension:91 x 48 x 56 2311 x 1219 x 1422 mm
Total weight:4700 lbs 2132 kg
Operation ManualPDF
Replacement PartsNext day shipping
Shipping CostNot Included
Shipping ResponsibilityBuyers
Warranty1 Year
Extended WarrantyOptional

VideoView Here

Optional Equipment
Multi Roll StandSingle roll stand
Table RandomizerLight Curtain
Die Clamping SystemLaser Marking System

Beam Press - Clicker Press by CJRTec
CJR Clicker Press Die Cutting Machine electronics made by Siemens
cjrtec clicker press die cutting machine

30 Ton Beam Press 8" Wide Opening

23
23
60-DAY BUILD PRICE

IN STOCK PRICE
guarantee best price
guarantee best price
Model Number:30-BP-M-X-Y
Standard Metric
Travel adjustment range:5.7 145 mm
Range between the working tables:2.3 " 8.0 58 mm
Size of the upper pressing board:62.0 " 19.5 1575 mm
Size of lower worktable:62 " 20 1575 mm
Motor power:3 hp 4kW
Power Requirement3PHASE220V60Hz.
Startup Amps20
Operating Amps4
RPM1680
Power Cord5'
Hydraulic Fluid (Not Included)ISO 68
Overall dimension:90 x 46 x 65 2286 x 1168 x 1651 mm
Operation ManualPDF
Replacement PartsNext day shipping
Shipping CostNot Included
Shipping ResponsibilityBuyers
Warranty1 Year
Extended WarrantyOptional

Video:View Here

Optional Equipment
Multi Roll StandSingle roll stand
Table RandomizerLight Curtain
Die Clamping SystemLaser Marking System

Beam Press - Clicker Press by CJRTec
CJR Clicker Press Die Cutting Machine electronics made by Siemens
cjrtec clicker press die cutting machine

30 Ton Beam Press 11" XL Opening

24
24
60-DAY BUILD PRICE

IN STOCK PRICE
guarantee best price
guarantee best price
Model Number:30-BP-M-X-Y
Standard Metric
Travel adjustment range:8.6 218 mm
Range between the working tables:2.3 " 11.0 58 mm
Size of the upper pressing board:62.0 " 19.5 1575 mm
Size of lower worktable:62 " 20 1575 mm
Motor power:3 hp 4kW
Power Requirement3PHASE220V60Hz.
Startup Amps20
Operating Amps4
RPM1680
Power Cord5'
Hydraulic Fluid (Not Included)ISO 68
Overall dimension:90 x 46 x 65 2286 x 1168 x 1651 mm
Operation ManualPDF
Replacement PartsNext day shipping
Shipping CostNot Included
Shipping ResponsibilityBuyers
Warranty1 Year
Extended WarrantyOptional

Video:View Here

Optional Equipment
Multi Roll StandSingle roll stand
Table RandomizerLight Curtain
Die Clamping SystemLaser Marking System

Beam Press - Clicker Press by CJRTec
CJR Clicker Press Die Cutting Machine electronics made by Siemens
cjrtec clicker press die cutting machine
cjrtec clicker press die cutting machine

30 Ton Beam Press 82" Extra Wide Table

25
25
60-DAY BUILD PRICE

IN STOCK PRICE
guarantee best price
guarantee best price
Model Number:30-BP-M-X-Y
Standard Metric
Travel adjustment range:4.0 102 mm
Range between the working tables2.5 " 6.25 64 mm
Size of the upper pressing board:82.0 " 19.5 2083 mm
Size of lower worktable:82 x 20 2083 x 508 mm
Motor power:4 HP 5kW
Power Requirement3PHASE 220V 60Hz
Startup Amps20
Operating Amps4
RPM1680
Power Cord5'
Hydraulic Fluid (Not Included)ISO 68
Overall dimension:91 x 48 x 56 2311 x 1219 x 1422 mm
Total weight:4700 lbs 2132 kg
Operation ManualPDF
Replacement PartsNext day shipping
Shipping CostNot Included
Shipping ResponsibilityBuyers
Warranty1 Year
Extended WarrantyOptional

Video:View Here

Optional Equipment
Multi Roll StandSingle roll stand
Table RandomizerLight Curtain
Die Clamping SystemLaser Marking System

Beam Press - Clicker Press by CJRTec
CJR Clicker Press Die Cutting Machine electronics made by Siemens
cjrtec clicker press die cutting machine

30 Ton Beam Press Fully Automatic

26
26
60-DAY BUILD PRICE

IN STOCK PRICE
guarantee best price
guarantee best price
Model Number:30-BP-A-X-N
Standard Metric
Travel adjustment range:4.0 102 mm
Range between the working tables2.5 " 6.25 64 mm
Size of the upper pressing board:63.0 " 19.5 1600 mm
Size of lower worktable:63 " 20 1600 mm
Motor power:4 HP 5kW
Power Requirement3PHASE 220V 60Hz
Startup Amps20
Operating Amps4
RPM1680
Power Cord5'
Hydraulic Fluid (Not Included)ISO 68
Overall dimension:91 x 48 x 56 2311 x 1219 x 1422 mm
Total weight:4700 2132 kg
Operation ManualPDF
Replacement PartsNext day shipping
Shipping CostNot Included
Shipping ResponsibilityBuyers
Warranty1 Year
Extended WarrantyOptional

Video:View Here

Optional Equipment
Multi Roll StandTable Randomizer
Light CurtainLaser Marking System
Die Clamping SystemSingle roll stand

Beam Press - Clicker Press by CJRTec
CJR Clicker Press Die Cutting Machine electronics made by Siemens
cjrtec clicker press die cutting machine

35 Ton Beam Press

27
27
60-DAY BUILD PRICE

IN STOCK PRICE
guarantee best price
guarantee best price
Model Number:35-BP-M-X-N
Standard Metric
Travel adjustment range4.0 102 mm
Range between the working tables2.5 " 6.25 64 mm
Size of the upper pressing board63.0 " 23.5 1600 mm
Size of lower worktable63 " 24 1600 mm
Motor power3 HP 4kW
Power Requirement3PHASE220V60Hz.
Power Cord5'
Startup Amps26
Operating Amps5
Overall dimension84.5 x 45 x 59
Crate Demension85 x 35.5 x 71
Total weight4014 lbs 1821 kg
Hydraulic Fluid (Not Included)ISO 68
Operation ManualPDF
Replacement PartsNext day shipping
Shipping CostNot Included
Shipping ResponsibilityBuyers
Warranty1 Year
Extended WarrantyOptional

Video:View Here

Optional Equipment
  • Automatic Roll feed
  • Light Curtain
  • Semi Auto Roll feed
  • Laser Marking System
  • Single Roll stand
  • Table Randomizer
  • Multi Roll Stand
  • Die Clamping System

Beam Press - Clicker Press by CJRTec
CJR Clicker Press Die Cutting Machine electronics made by Siemens
cjrtec clicker press die cutting machine

35 Ton Beam Press Fully Automatic

28
28
60-DAY BUILD PRICE

IN STOCK PRICE
guarantee best price
guarantee best price
Model Number:35-BP-A-X-N
Standard Metric
Travel adjustment range:4.0 102 mm
Range between the working tables:2.5 " 6.25 64 mm
Size of the upper pressing board:63.0 " 23.5 1600 mm
Size of lower worktable:63 " 24 1600 mm
Motor power: 3kW 4hp 4kW
Power Requirement3PHASE 220V 60Hz.
Startup Amps20
Operating Amps4
RPM1680
Power Cord5'
Hydraulic Fluid (Not Included)ISO 68
Overall dimension:90 x 51 x 87 2286 x 1295 x 2210 mm
Total weight:4960 lbs 2250 kg
Operation ManualPDF
Replacement PartsNext day shipping
Shipping CostNot Included
Shipping ResponsibilityBuyers
Warranty1 Year
Extended WarrantyOptional

Video:View Here

Optional Equipment
  • Table Randomizer
  • Multi Roll Stand
  • Die Clamping System
  • Light Curtain
  • Single roll stand
  • Laser Marking System

Beam Press - Clicker Press by CJRTec
CJR Clicker Press Die Cutting Machine electronics made by Siemens
cjrtec clicker press die cutting machine
cjrtec clicker press die cutting machine

40 Ton Beam Press Fully Automatic

30
30
60-DAY BUILD PRICE

IN STOCK PRICE
guarantee best price
guarantee best price
Model Number:40-BP-A-X-N
Standard Metric
Travel adjustment range0 to 4.25 0 - 108 mm
Range between the working tables2.25 " 6.69 57 mm
Size of the upper pressing board63.0 " 28.7 1600 mm
Size of lower worktable63 " 29 1600 mm
Motor power4 hp 5kW
Power Requirement3PHASE 220V 60Hz.
RPM1680
Power Cord5'
Startup Amps26
Operating Amps5
Overall dimension91 x 57 x 87
Posts4
Net Weight6700 lbs 3039 kg
Hydraulic Fluid (Not Included)ISO 68
Operation ManualPDF
Replacement PartsNext day shipping
Shipping CostNot Included
Shipping ResponsibilityBuyers
Warranty1 Year
Extended WarrantyOptional

Video:View Here

Optional Equipment
  • Automatic Roll feed
  • Light Curtain
  • Semi Auto Roll feed
  • Laser Marking System
  • Single Roll stand
  • Table Randomizer
  • Multi Roll Stand
  • Die Clamping System

Beam Press - Clicker Press by CJRTec
CJR Clicker Press Die Cutting Machine electronics made by Siemens
cjrtec clicker press die cutting machine
cjrtec clicker press die cutting machine

60 Ton Beam Press

32
32
60-DAY BUILD PRICE

IN STOCK PRICE
guarantee best price
guarantee best price
Model Number:60-BP-M-X-N
Standard Metric
Travel adjustment range5.0 " 127 mm
Range between the working tables7.5 " 191 mm
Size of the upper pressing board63.0 " 31.5 1600 mm
Size of lower worktable63.0 " 32.0 1600 mm
Motor power6HP 8kW
Power Requirement3PHASE 220V 60Hz
Startup Amps75
Operating Amps20
RPM1680
Power Cord5'
Posts4
Overall dimension:87 x 53 x 71 2210 x 1346 x 1803 mm
Net Weight6666 lbs 3024 kg
Hydraulic Fluid (Not Included)ISO 68
Operation ManualPDF
Replacement PartsNext day shipping
Shipping CostNot Included
Shipping ResponsibilityBuyers
Warranty1 Year
Extended WarrantyOptional

VideoView Here

Beam Press - Clicker Press by CJRTec
CJR Clicker Press Die Cutting Machine electronics made by Siemens
cjrtec clicker press die cutting machine

70 Ton Beam Press

33
33
60-DAY BUILD PRICE

IN STOCK PRICE
guarantee best price
guarantee best price
Model Number:70-BP-M-X-N
Standard Metric
Travel adjustment range5.0 127 mm
Range between the working tables2.0 " 7.5 51 mm
Size of the upper pressing board63.0 " 36.0 1600 mm
Size of lower worktable63.0 " 36.5 1600 mm
Motor power6HP 8kW
Power Requirement3PHASE 220V 60Hz.
Startup Amps75
Operating Amps20
RPM1680
Power Cord5'
Posts4
Overall dimension
Net Weight
Hydraulic Fluid (Not Included)ISO 68


Operation ManualPDF
Replacement PartsNext day shipping
Shipping CostNot Included
Shipping ResponsibilityBuyers
Warranty1 Year
Extended WarrantyOptional

VideoView Here

Optional Equipment
  • Automatic Roll feed
  • Light Curtain
  • Semi Auto Roll feed
  • Laser Marking System
  • Single Roll stand
  • Table Randomizer
  • Multi Roll Stand
  • Die Clamping System

Beam Press - Clicker Press by CJRTec
CJR Clicker Press Die Cutting Machine electronics made by Siemens
cjrtec clicker press die cutting machine
cjrtec clicker press die cutting machine

80 Ton Beam Press

34
34
60-DAY BUILD PRICE

IN STOCK PRICE
guarantee best price
guarantee best price
Model Number:80-BP-M-X-N
Standard Metric
Travel adjustment range0.0 " 5.0 1 mm
Range between the working tables2.0 " 7.5 51 mm
Size of the upper pressing board63.0 " 36.0 1600 mm
Size of lower worktable63.0 " 36.5 1600 mm
Motor power10 HP 14kW
Power Requirement220V 3PHASE 60Hz
Startup Amps75
Operating Amps20
RPM1680
Power Cord5'
Posts4
Overall Dimension105.51 x 39.37 x 63.0 2680 x 1000 x 1600 mm
Net Weight13227.74 lbs 6000 kg
Hydraulic Fluid (Not Included)ISO 68

With pneumatic die clamps

Video:View Here
Operation ManualPDF
Replacement PartsNext day shipping
Shipping CostNot Included
Shipping ResponsibilityBuyers
Warranty1 Year
Extended WarrantyOptional


Optional Equipment
  • Automatic Roll feed
  • Light Curtain
  • Semi Auto Roll feed
  • Laser Marking System
  • Single Roll stand
  • Table Randomizer
  • Multi Roll Stand
  • Die Clamping System

Beam Press - Clicker Press by CJRTec
CJR Clicker Press Die Cutting Machine electronics made by Siemens
cjrtec clicker press die cutting machine
cjrtec clicker press die cutting machine

80 Ton Beam Press Computer Controlled

35
35
60-DAY BUILD PRICE

IN STOCK PRICE
guarantee best price
guarantee best price
Model Number:80-BP-M-K-N
Standard Metric
Lower Work Table63.0 " 36.5 1600 mm
Upper Beam63.0 " 36.0 1600 mm
Motor Size10 HP 14kW
Power Requirement3Phase 220v 60Hz
Starting Amps75
Running Amps23
RPM1680
Power Cord5'
Post4
Net Weight10689 lbs 4848 kg
Hydraulic Fluid (not included)ISO 68

Operation ManualPDF
Replacement PartsNext Day
Shipping CostNot Included
Shipping ResponsibilityBuyers
Warranty1 Year
Optional WarrantyUp to 5 years


Optional Equipment
  • Safety Light Curtains
  • Waste Recovery Rollers
  • Waste Grinders
  • Travel Pick and Place Robot

Beam Press - Clicker Press by CJRTec
CJR Clicker Press Die Cutting Machine electronics made by Siemens
cjrtec clicker press die cutting machine
cjrtec clicker press die cutting machine

100 Ton Beam Press

36
36
60-DAY BUILD PRICE

IN STOCK PRICE
guarantee best price
guarantee best price
Model Number:100-BP-M-J-N
Standard Metric
Travel Adjustment Range:5.5" 140 mm
Range between the working tables:1.9" 48 mm
Size of Upper Pressing Board:63.0 x 48.0
Size of Lower Worktable:63.0 x 48.5
Motor Power:14.75 HP 20kW
Power Requirement:220V 3Phase 60hz
Startup Amps:75A
Operating Amps:34A
Power cord:5'
Posts:4
Weight:15000 lbs 6804 kg
Dimensions:106 x 70 x 70 2692 x 1778 x 1778 mm

Operational ManualPDF
Replacement PartsNext day shipping
Shipping CostNot included
Shipping ResponsibilityBuyers
Warranty1 Year
Extended WarrantyOptional

Optional Equipment
Table RandomizerMulti Roll Stand
Die Clamping SystemLight Curtain
Single Roll StandLaser Marking System


Beam Press - Clicker Press by CJRTec
CJR Clicker Press Die Cutting Machine electronics made by Siemens
cjrtec clicker press die cutting machine
cjrtec clicker press die cutting machine

100 Ton 4-Post Beam Press

37
37
60-DAY BUILD PRICE

IN STOCK PRICE
guarantee best price
guarantee best price
Model Number:100-BP-M-X-N
Standard Metric
Travel adjustment range5.0" 127 mm
Range between the working tables2.0 " 7.5 51 mm
Size of the upper pressing board63.0 x 31.5 1600 x 800 mm
Size of lower worktable63.0 x 32.0 1600 x 813 mm
Motor power6HP 8kW
Power Requirement3PHASE 220V 60Hz.
Startup Amps95
Operating Amps30
RPM1680
Power Cord5'
Posts4
Overall dimension
Net Weight
Hydraulic Fluid (Not Included)ISO 68


Operation ManualPDF
Replacement PartsNext day shipping
Shipping CostNot Included
Shipping ResponsibilityBuyers
Warranty1 Year
Extended WarrantyOptional

Video:View Here

Optional Equipment
  • Automatic Roll feed
  • Light Curtain
  • Semi Auto Roll feed
  • Laser Marking System
  • Single Roll stand
  • Table Randomizer
  • Multi Roll Stand
  • Die Clamping System

Beam Press - Clicker Press by CJRTec
CJR Clicker Press Die Cutting Machine electronics made by Siemens
cjrtec clicker press die cutting machine
cjrtec clicker press die cutting machine

125 Ton Beam Press

38
38
60-DAY BUILD PRICE

IN STOCK PRICE
guarantee best price
guarantee best price
Model Number:125-BP-M-X-N
Standard Metric
Travel adjustment range5.0" 127 mm
Range between the working tables2.0" 51 mm
Size of the upper pressing board63.0 x 31.5 1600 x 800 mm
Size of lower worktable63.0 x 32.0 1600 x 813 mm
Motor power6HP 8kW
Power Requirement3PHASE 220V 60Hz.
Startup Amps75
Operating Amps20
RPM1680
Power Cord5'
Posts4
Overall dimension:92.5 x 55.0 x 61.0 2350 x 1397 x 1549 mm
Net Weight7720 lbs 3502 kg
Hydraulic Fluid (Not Included)ISO 68


Operation ManualPDF
Replacement PartsNext day shipping
Shipping CostNot Included
Shipping ResponsibilityBuyers
Warranty1 Year
Extended WarrantyOptional

Video:View Here

Optional Equipment
  • Automatic Roll feed
  • Light Curtain
  • Semi Auto Roll feed
  • Laser Marking System
  • Single Roll stand
  • Table Randomizer
  • Multi Roll Stand
  • Die Clamping System

Beam Press - Clicker Press by CJRTec
CJR Clicker Press Die Cutting Machine electronics made by Siemens
cjrtec clicker press die cutting machine
cjrtec clicker press die cutting machine

150 Ton Beam Press

39
39
60-DAY BUILD PRICE

IN STOCK PRICE
guarantee best price
guarantee best price
Model Number:150-BP-M-X-N
Standard Metric
Stroke range :0 " 7.5 0 mm
Range between the working tables :3.0 " 11.0 76 mm
Size of upper cutting board :58.0 x 43.25
Size of lower worktable :58.0 x 44.0
Motor power :14.75 HP 20kW
Power Requirement3PHASE 220V 60Hz.
Startup Amps180
Operating Amps35
RPM1680
Power Cord5'
PLC touching screen :Weinview
PLC :Mitsubishi
Net weight :11684 lbs 5300 kg
Gross weight :12125 lbs 5500 kg
Overall dimension:95 x 71 x 79 2413 x 1803 x 2007 mm
Hydraulic Fluid (Not Included)ISO 68


Operation ManualPDF
Replacement PartsNext day shipping
Shipping CostNot Included
Shipping ResponsibilityBuyers
Warranty1 Year
Extended WarrantyOptional

VideoView Here

Optional Equipment
  • Automatic Roll feed
  • Light Curtain
  • Semi Auto Roll feed
  • Laser Marking System
  • Single Roll stand
  • Table Randomizer
  • Multi Roll Stand
  • Die Clamping System

Beam Press - Clicker Press by CJRTec
CJR Clicker Press Die Cutting Machine electronics made by Siemens
cjrtec clicker press die cutting machine
cjrtec clicker press die cutting machine

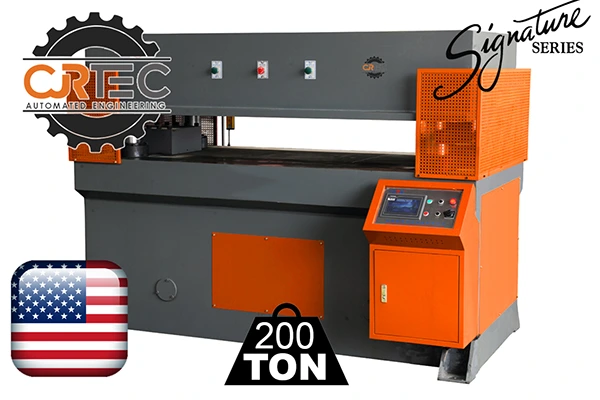

200 Ton Beam Press

40
40
60-DAY BUILD PRICE

IN STOCK PRICE
guarantee best price
guarantee best price
Model Number:200-BP-M-X-N
Standard Metric
Stroke range :0 0 mm
Range between the working tables :2.0 " 51 mm
Size of upper cutting board :63.0 " 39.25
Size of lower worktable :63.0 x 40.0
Motor power :15hp 21kW
Power Requirement3PHASE 220V 60Hz.
Startup Amps180
Operating Amps35
RPM1680
Power Cord5'
PLC touching screen :Weiview
PLC :Mitsubishi
Net weight :15432 lbs 7000 kg
Gross weight :16093 lbs 7300 kg
Overall dimension:94 x 71 x 67 2388 x 1803 x 1702 mm
Hydraulic Fluid (Not Included)ISO 68


Operation ManualPDF
Replacement PartsNext day shipping
Shipping CostNot Included
Shipping ResponsibilityBuyers
Warranty1 Year
Extended WarrantyOptional

VideoView Here

Optional Equipment
  • Automatic Roll feed
  • Light Curtain
  • Semi Auto Roll feed
  • Laser Marking System
  • Single Roll stand
  • Table Randomizer
  • Multi Roll Stand
  • Die Clamping System



Buy a Clicker Press Today
